Cctv System Kits 8Ch Dvr Recorder With 8Pcs Waterproof Camera Surveillance System Remote View #mia1750

$ 390.00

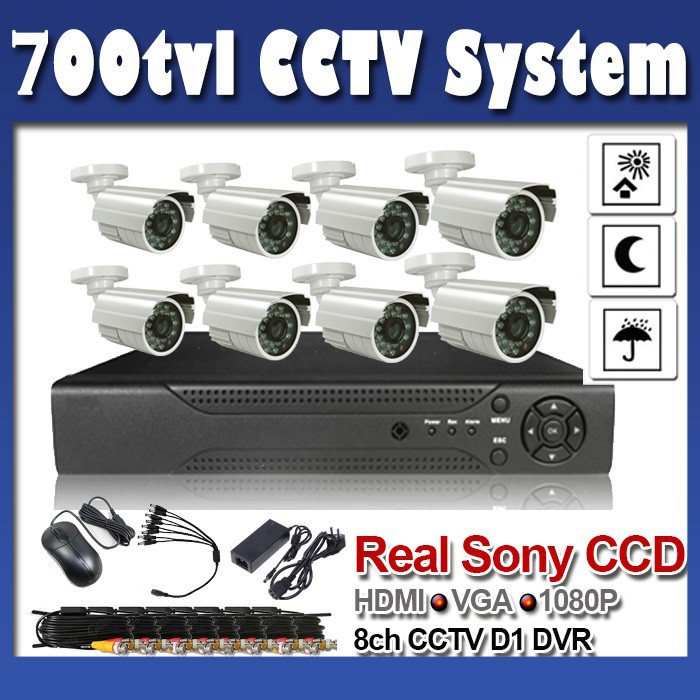

CCTV System Kits 8ch DVR Recorder with 8Pcs Waterproof Camera Surveillance System remote view Mobile phone Monitor

DVR specification:

Model NO.

Order now...

SKU: 1364642553. Category: . Tag: .

Product Description

Show Super Deals

cctv system kits 8ch dvr recorder with 8pcs waterproof camera surveillance system remote view mobile phone monitor free shipping

CCTV System Kits 8ch DVR Recorder with 8Pcs Waterproof Camera Surveillance System remote view Mobile phone Monitor



DVR specification:

Model NO.



OPERATION SYSTEM

Windows/Mac OS

VIDEO

VIDEO SYSTEM

NTSC/PAL Switch Selectable

INPUT

BNC*8,1.0Vp-p,75ohm

Video Output

1 CH BNC(1.0Vp-p,75?); HD VGA Output

SPOT

NO

AUDIO

INPUT

1CH , RCA

OUTPUT

1CH, RCA

CONTROL

MOUSE

YES

IR CONTROLLER

YES

STORAGE

BUILD IN INTERFACE

Support 1HDD up to 2TB (No HDD Included)

DISPLAY

DIVISION

1, 4, 8

OPERATIONAL

COMPRESSION

H.264 Main Profile

RECORDING MODE

Manual/Schedule/Motion Detection/Sensor

RESOLUTION

NTSC:704*480,704*240,352*240

PAL:704*576,704*288,352*288

RECORD FRAME RATE

NTSC:120FPS@D1,240FPS@HD1

PAL:100FPS@D1,200FPS@HD1

2CH D1 + 6CH CIF/ 8CH Not Real-time Recording

QUALITY

Worst, Worse, General, Good, Better, Best

MOTION DETECTION

YES

PLAYBACK

PLAYBACK FRAME RATE(PAL)

120(100)FPS@HD1; 8CH CIF

MULTI CHANNEL PLAYBACK

1, 4, 8

SPEED

Normal, Slow & FF(1/4,1/3,1/2,1,2*,3*,4*)

SEARCH METHOD

Time, Event, Channels and Calendar

COMMUNICATION

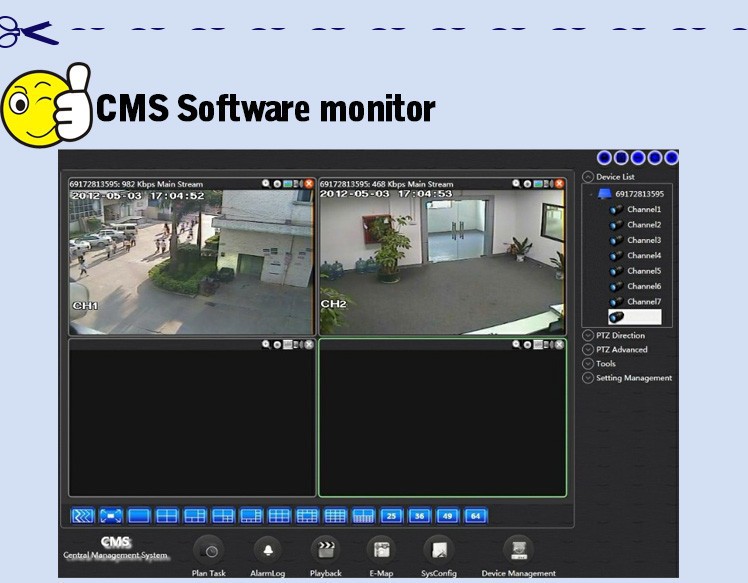

REMOTE SOFTWARE

Remote Client, IE Brower, Mobile, CMS, Firefox, Google Chrome

REMOTE OPERATION

Remote view, remote playback, remote setup

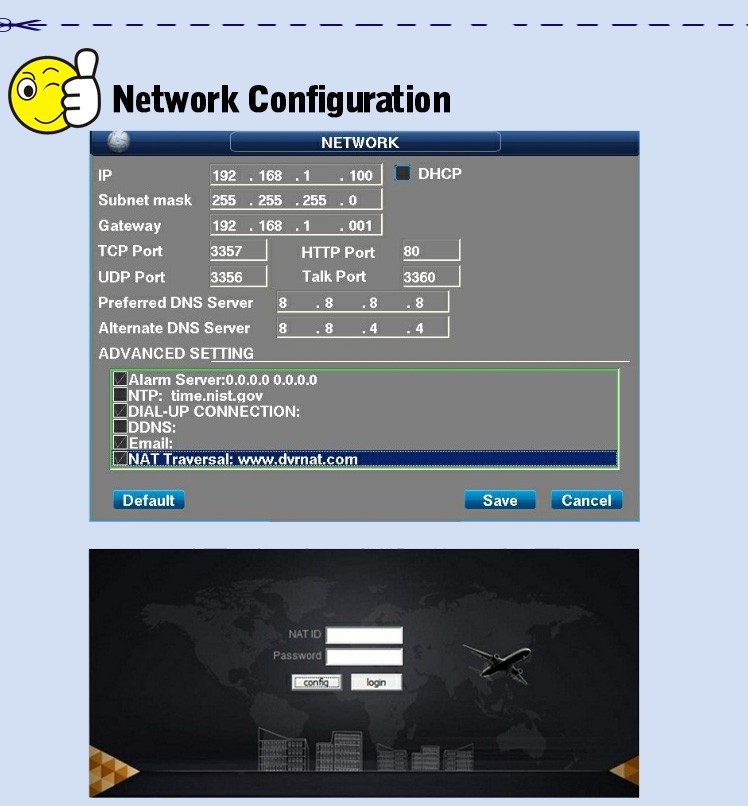

NETWORK SERVICE

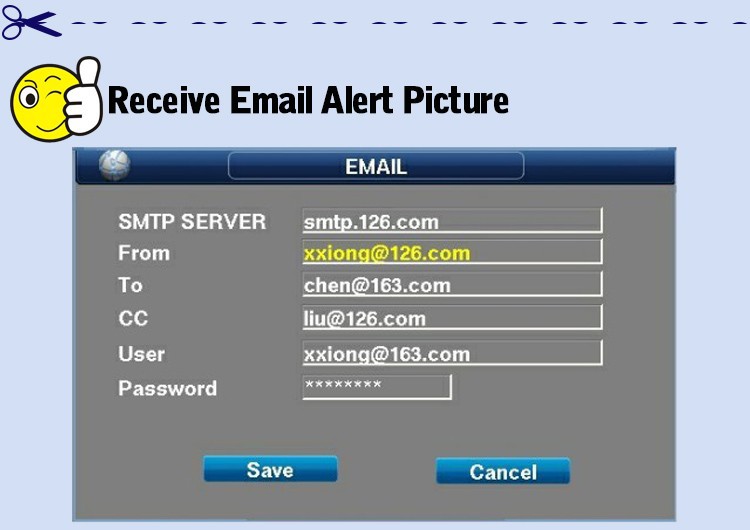

TCP/IP,UDP,HTTP,DDNS,SMTP(SSL),LAN,DHCP,PPPOE

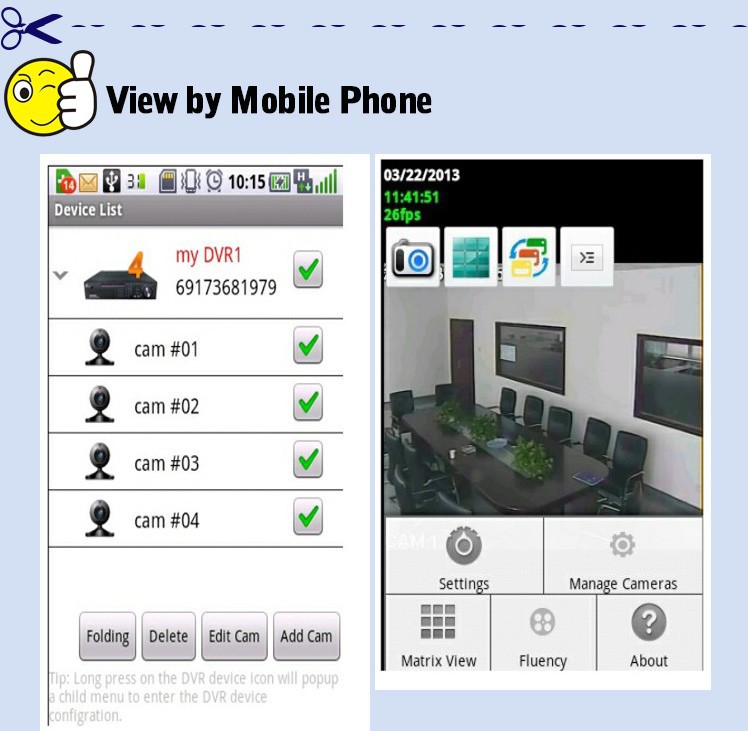

MOBILE PHONE

Support Windows OS, Symbian OS, iPhone, Blackberry and Android operation system Mobile phone

WAN RJ45

10/100 Mbit/s

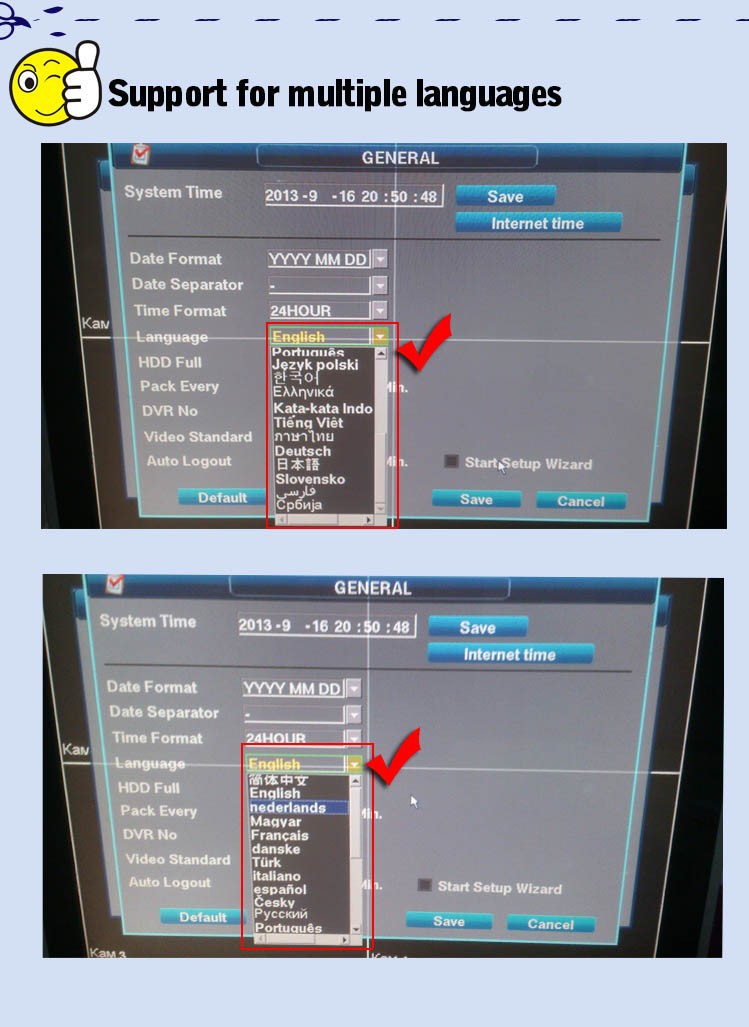

GUI INTERFACE

Supported GUI 16 Bit True Color

PTZ PROTOCOL

YES

BACKUP

EXTERNAL

USB2.0

NETWORK

YES

GENERAL

ALARM IN/OUT

NO

OPERATION TEMPERATURE

10°~55°

WORKING HUMIDITY

10% ~ 90%

POWER CONSUMPTION

DC 12V,3A

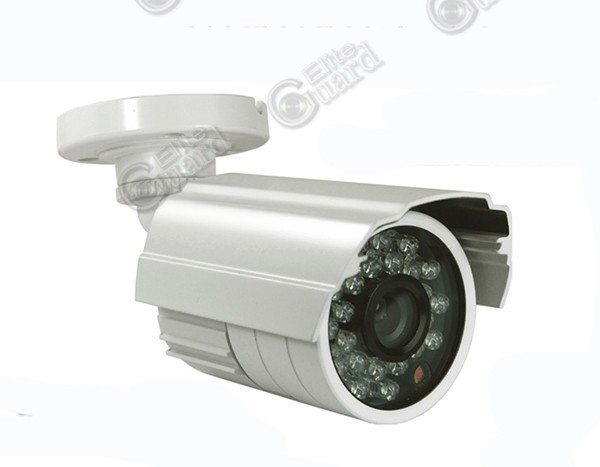

Camera Specification:

Image Sensor

1/3" SONY SUPER HDD ii CCD

TV System

700 TVL

Image Resolution

PAL:752(H)×582(V) Approx. 440K pixels

NTSC:768(H)×494(V) Approx. 380K pixels

Min. illumination

0.1LUX/F1.2 (Color)

S/N ratio

>52 db

AES

1/50-1/60,000Sec(PAL),1/60-1/60,000Sec(NTSC)

White Balance

ATW

AGC

Auto

BLC

Auto

Gamma Adjusting

0.45

synchronization System

Internal

Standard lens

3.6 mm lens

IR Nnight vision

10-25m

Video Output

1.0Vp-p,75ohm

Power supply

12v,100mA

Operating Environment

10°C~+50°C,RH90% MAX

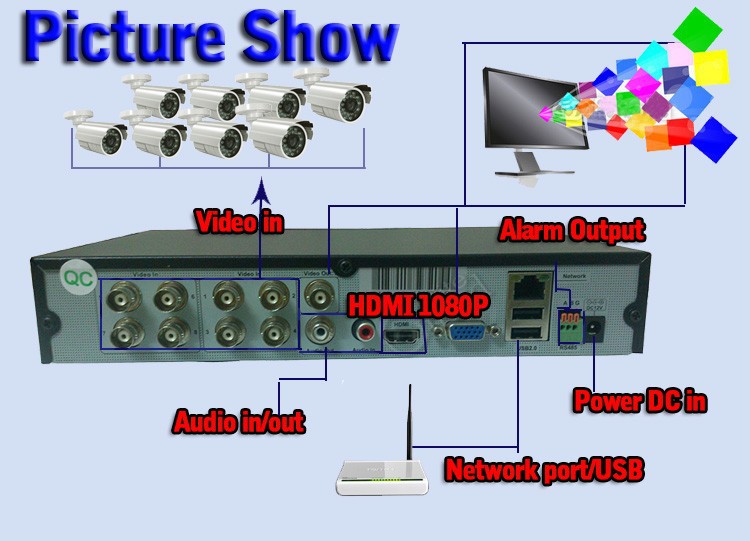

Picture Show:

700tvl_CCTV_System_Sony_CCD8CH_DVRBullet_CameraBullet-Camera-2CCTV_System_1CCTV_System_2CCTV_System_3CCTV_System_4CCTV_system_5CCTV_System_6



Package:

8ch DVR x1

Real Sony CCD 700tvl Outdoor Camera x8

Power supply

8way Power splitter x1

CCTV Cable x8

Remote Control x1

CD&Manual

Mouse x1

After Service logol

See all Bestsellers

Additional Information

Is_customized

Yes

Brand Name

Elite Guard

Model Number

TZ8

Recording

2ch D1+6ch CIF

CCTV System

8ch

IR Camera

Real Sony 700TVL

IR Lens

3.6mm

IR Distance

20M

IR LED

24Pcs

Waterproof

Yes

Hidden Cable

Yes
